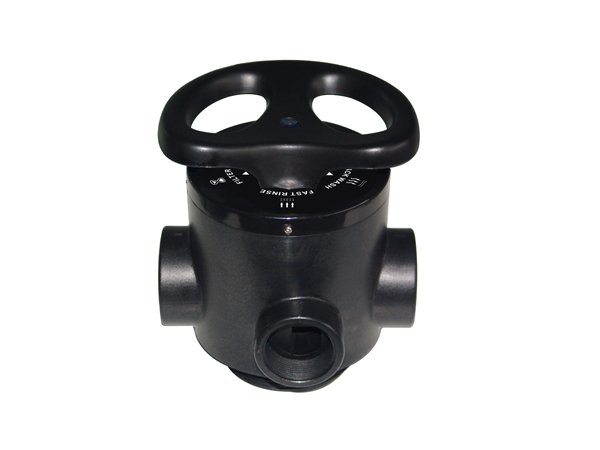

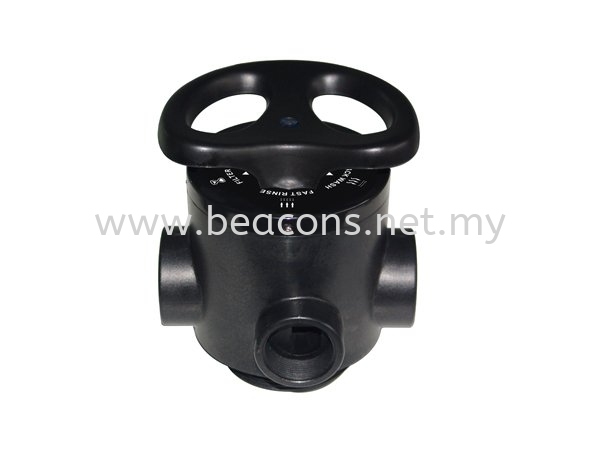

Manual Filtration Valve -F56D, 2"
¡ñWater Pressure-----------------------------------------------0.15—0.6MPa
¡ñWater temperature ------------------------------------------5¡æ-50¡æ
¡ñTurbidity--------------------------------------------------------£¼20FTU
¡ñInlet/Outlet-----------------------------------------------------2″F
¡ñDrain------------------------------------------------------------1.5″F
¡ñBase------------------------------------------------------------4″-8UN
¡ñRiser pipe------------------------------------------------------1.5″D-GB
¡ñWater capacity------------------------------------------------10 m3/h
¡ñTank size(inch)-----------------------------------------------10″¡«24″
¡öIt adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
¡öNo water passes the valve in rinse in single tank type.
¡öReasonable design of the flow passage: Service→Backwash→Fast Rinse→Service.
¡öIt can be changed to be side-mounted valve with side-mounted connector.
¡öIt can operate under pressure, without leakage.
¡ñWater temperature ------------------------------------------5¡æ-50¡æ
¡ñTurbidity--------------------------------------------------------£¼20FTU
¡ñInlet/Outlet-----------------------------------------------------2″F
¡ñDrain------------------------------------------------------------1.5″F
¡ñBase------------------------------------------------------------4″-8UN
¡ñRiser pipe------------------------------------------------------1.5″D-GB
¡ñWater capacity------------------------------------------------10 m3/h
¡ñTank size(inch)-----------------------------------------------10″¡«24″
¡öIt adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
¡öNo water passes the valve in rinse in single tank type.
¡öReasonable design of the flow passage: Service→Backwash→Fast Rinse→Service.
¡öIt can be changed to be side-mounted valve with side-mounted connector.
¡öIt can operate under pressure, without leakage.
